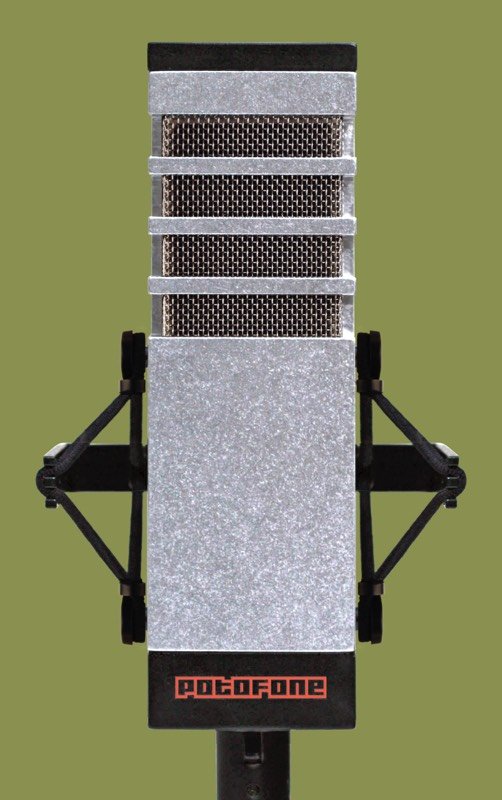

3552CA Active Ribbon Microphone
The Potofone 3552CA is the active version of the 3552C and is identical in every way with the addition of an internal phantom-powered preamp, providing an additional 20db of exceptionally low noise gain. With unique technology, design features, quality materials, and construction, Potofone Ribbon Microphones are the correct choice for studio and live performance recording. The Potofone 3552CA has a figure-8 pattern and a frequency response that is flat from 30 to 15,000 Hz. The Potofone 3552CA ribbon transducer is of a unique design that minimizes the signal path, from the front to the back of the ribbon. The Potofone is manufactured and hand-assembled in the USA from state-of-the-art transducers, transformers, and materials.
Internal phantom powered preamp adding 20db of pristine gain
1.8 micron 2” (50mm) pure aluminum ribbon
Powerful custom rare earth neodymium magnets
Ultra short path ribbon motor
Dual vibration isolation - internal and external shock mounting
Electrically transparent field housing
Meticulously crafted CineMag™ transformer
High-abuse mil-spec Neutrik™ XLR connector
Handmade and hand-tuned in the USA
Additional specsType: Active Ribbon (velocity) Microphone with internal preamp providing 20db of additional gainRibbon Specifications: 99% Pure aluminum, 1.8 microns, 2" (L) X 3/16" (W)Polar pattern: Figure 8Frequency response: 30 to -15,000 HzOutput Impedance: 3.3K ohmsRecommended load impedance: 1400 OhmsConnector: 3-Pin male XLR
Construction
Fine stainless steel mesh set into heavy gauge machined 6061 aluminum housing with molded urethane end caps. An electrically neutral magnet motor eliminates stray magnetic fields. Included open front shock mount allows for close mic placement and an unimpeded sound path.
Dimensions
L6-5/8" H (168 mm) x 2" (50 mm) x 2" (50 mm) Weight: 16.2 oz. (462 g).- including shock mount.
Packaging
Each Potofone Microphone is packaged in a foam-suspended 2-piece packaging tube. Tube supports microphone and shock mount in a "ready to use" setup. Includes lint-free protective velour bag, instructions, and warranty info card.
POTOFONE WARRANTY
Potofone warrants all products against defects in materials and workmanship for a period of (5) five years from the date of original user purchase. This warranty is offered to the original purchaser only and is not transferable. Ribbon elements are warranted for a period of one year from the date of purchase and will be replaced one time during the warranty period if they fail. Vacuum tubes are warranted for a period of 90 days from the date of purchase and will be replaced one time during the warranty period if they fail. Potofone will either repair or replace the product at no charge during the (5) five-year period. Buyer is responsible for return shipping charges if past the initial first 30 days of purchase. Please retain and use the original packaging. Please use the support page to contact us about shipping returns. THE WARRANTY WILL NOT APPLY TO THE PRODUCT IF IT HAS BEEN DAMAGED BY MISUSE, ACCIDENT, IMPROPER HANDLING, OR OPERATION, OR IF UNAUTHORIZED REPAIRS OR MODIFICATIONS ARE ATTEMPTED OR MADE. If service is required outside the warranty guidelines, we will contact you for authorization before any repairs are made.
